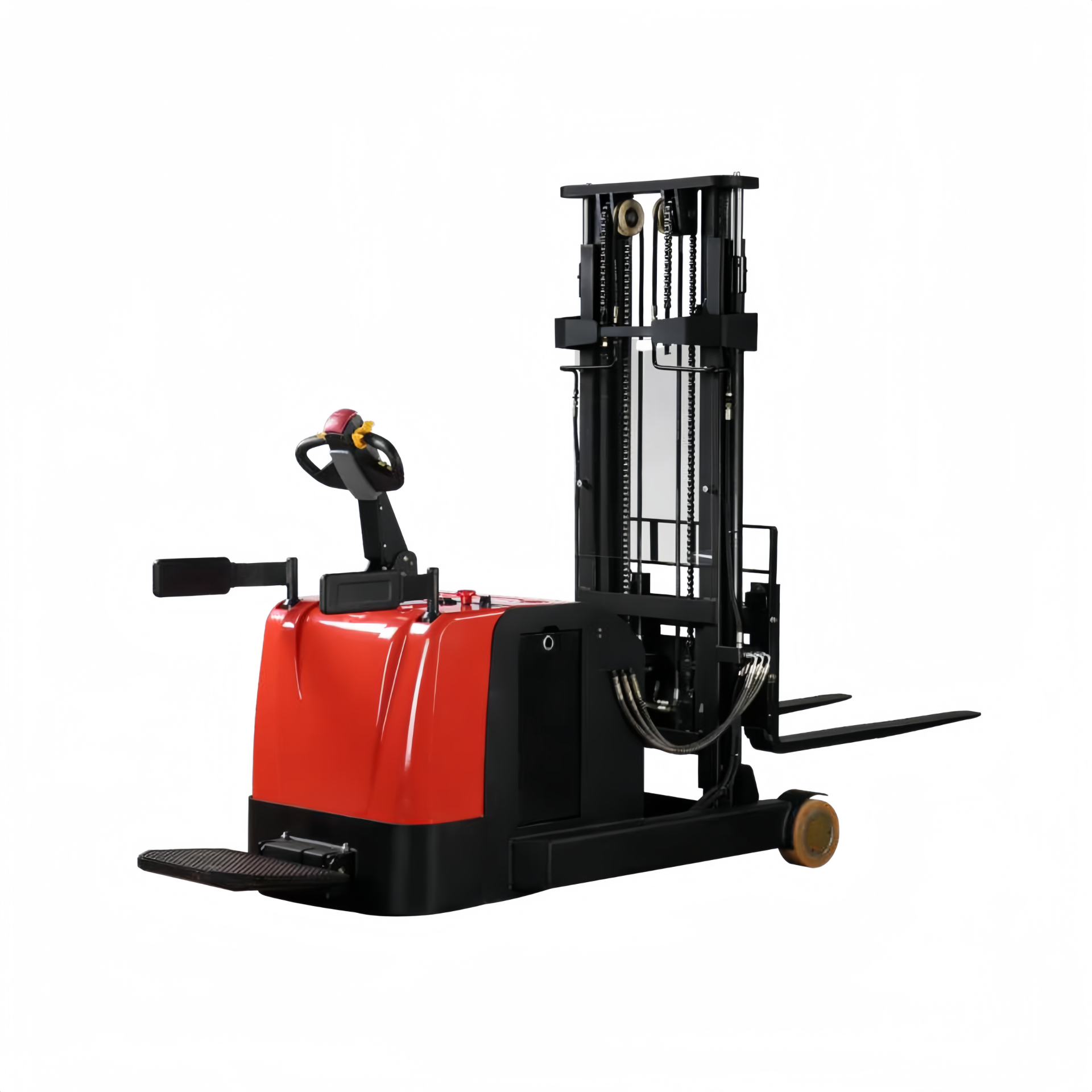

reach truck with conterbalance
suit for non-standard pallet
| MODEL | UNIT | ST-CDDGS 15 | ST-CDDGS 12 | ST-CDDGS 10 |
| capacity | Q(kg) | 1500 | 1500 | 1500 |
| load center | C(mm) | 500 | 500 | 500 |
| operation type | electric steering | electric steering | electric steering | |
| max fork height | H(mm) | 1600/2000/2500/3000/3500/4000/4500 | 1600/2000/2500/3000/3500/4000/4500 | 1600/2000/2500/3000/3500/4000/4500 |
| min. fork height | H3(mm) | 50 | 50 | 50 |
| fork span | E(mm) | 680 | 680 | 680 |
| fork length | L(mm) | 1070 | 1070 | 1070 |
| fork width | B1(mm) | 100 | 100 | 100 |
| overall length without/with pedal | A(mm) | 2855/3275 | 2690/3110 | 2690/3110 |
| overall width | B(mm) | 1020 | 1020 | 1020 |
| overall height | H1(mm) | 2100/1530/1780/2030/2280/2530/2780 | 2100/1530/1780/2030/2280/2530/2780 | 2100/1530/1780/2030/2280/2530/2780 |
| overall height when lift to max | H2(mm) | 2100/2505/3005/3505/4005/4505/5005 | 2100/2505/3005/3505/4005/4505/5005 | 2100/2505/3005/3505/4005/4505/5005 |
| turning radius without/with pedal | Wa(mm) | 1690/2110 | 1530/1950 | 1530/1950 |
| gangway 1000X1200 pallet | mm | 2060 | 2060 | 2060 |
| gangway 800X1000 pallet | mm | 2890 | 2730 | 2730 |
| drive speed, load/unload | Km/h | 4~5.5 | 4~5.5 | 4~5.5 |
| lift speed, load/unload | m/s | 0.07~0.15 | 0.07~0.15 | 0.07~0.15 |
| lowering speed, load/unload | m/s | 0.08~0.15 | 0.08~0.15 | 0.08~0.15 |
| max. gradeability, load/unload | % | 3/5 | 3/5 | 3/5 |
| wheel material | PU | PU | PU | |
| drive wheel | mm | φ248*75 | φ248*75 | φ248*75 |
| load roller | mm | φ210*85 | φ210*85 | φ210*85 |
| drive motor | Kw | AC2.2 | AC1.5 | AC1.5 |
| lift motor | Kw | DC2.2 | DC2.2 | DC2.2 |
| battery | V/ah | 210/24v | 210/24v | 210/24v |
| brake | electric | electric | electric | |
| controller | CURIS | CURIS | CURIS |
