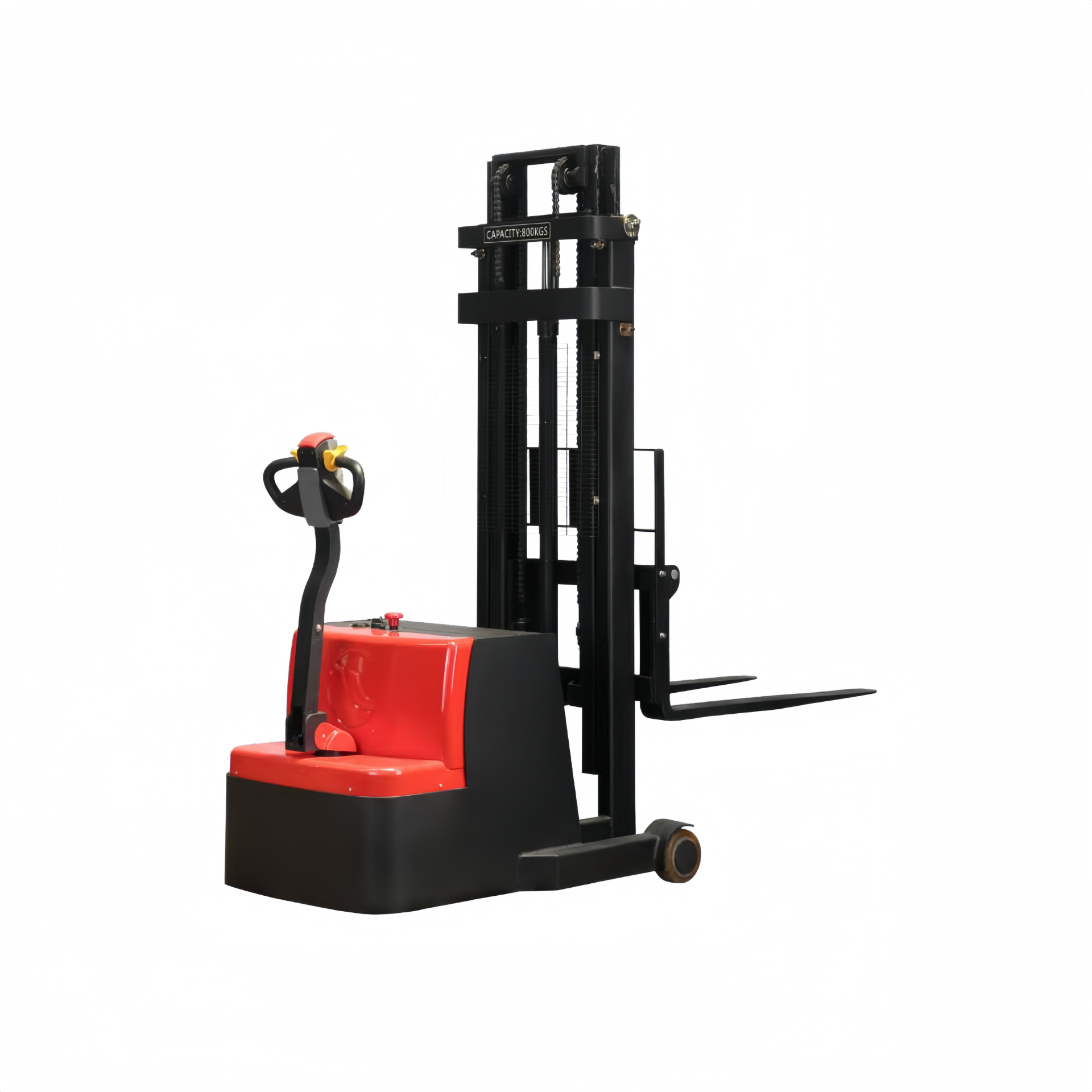

counterbalance

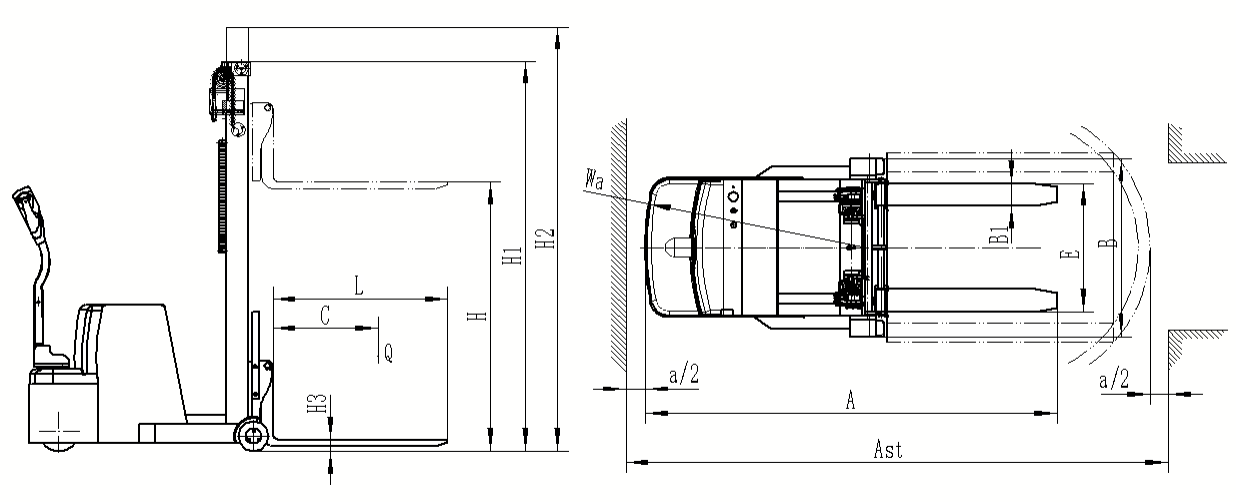

| MODEL | UNIT | ST-CDDG 08 |
| capacity | Q(kg) | 800 |
| load center | C(mm) | 500 |
| max fork height | H(mm) | 1600/2000/2500/3000 |
| min. fork height | H3(mm) | 60 |
| fork span | E(mm) | 680 |
| fork length | L(mm) | 1070 |
| fork width | B1(mm) | 100 |
| overall length | A(mm) | 2350 |
| overall width | B(mm) | 950 |
| overall height | H1(mm) | 2090/1560/1810/2060 |
| overall height when lift to max | H2(mm) | 2090/2530/3030/3530 |
| turning radius | Wa(mm) | 1210 |
| gangway 1000X1200 pallet | mm | 2810 |
| gangway 800X1000 pallet | mm | 2770 |
| drive speed, load/unload | Km/h | 3~5 |
| lift speed, load/unload | m/s | 0.07~0.13 |
| lowering speed, load/unload | m/s | 0.1~0.13 |
| max. gradeability, load/unload | % | 3/5 |
| wheel material | PU | |
| drive wheel | mm | φ210*70 |
| load roller | mm | φ160*72 |
| drive motor | Kw | DC0.75 |
| lift motor | Kw | DC2.2 |
| battery | V/ah | 120/12v（X2） |
| brake | electric | |
| controller | CURIS 1212P | |
| weight | 1180/1210/1240/1270 |
