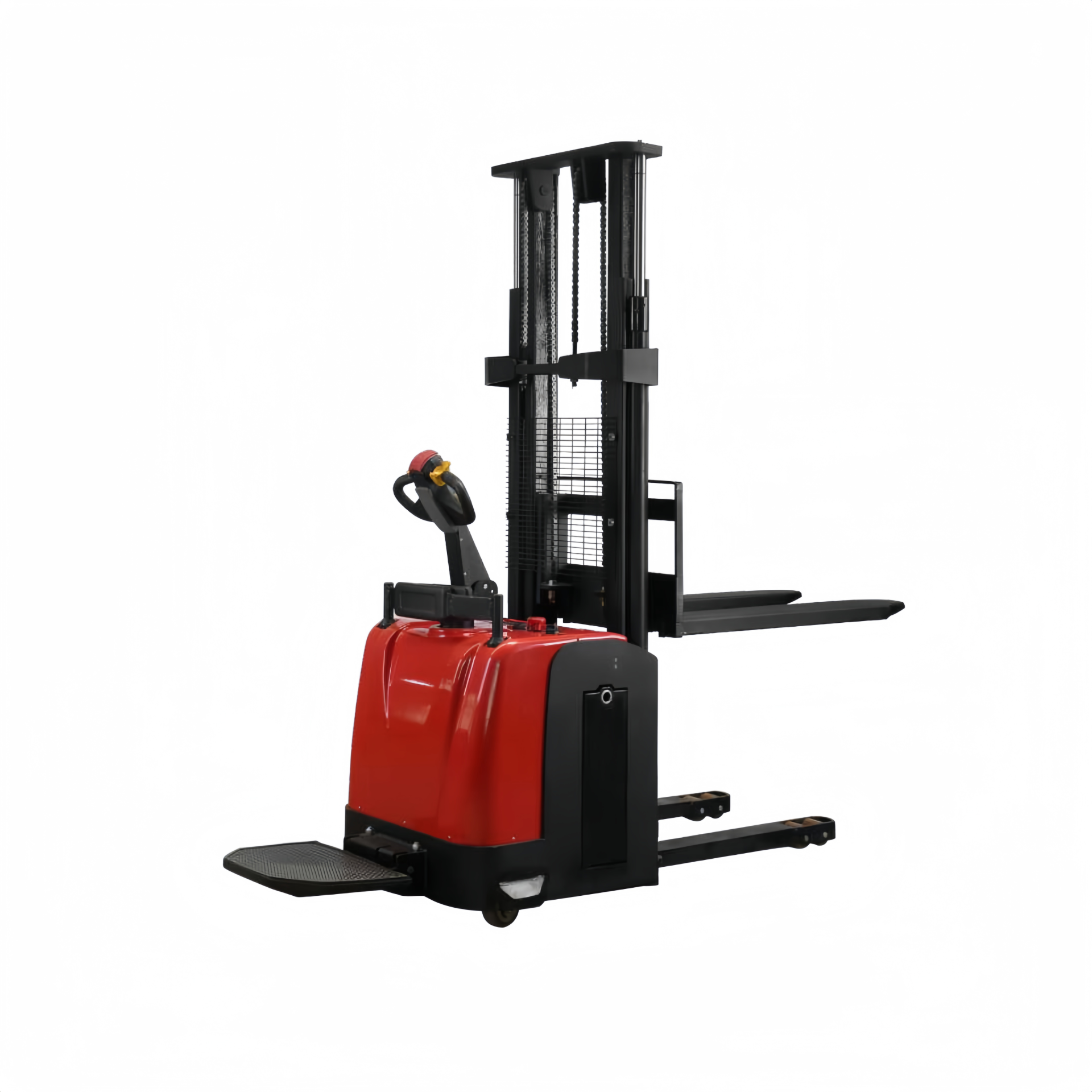

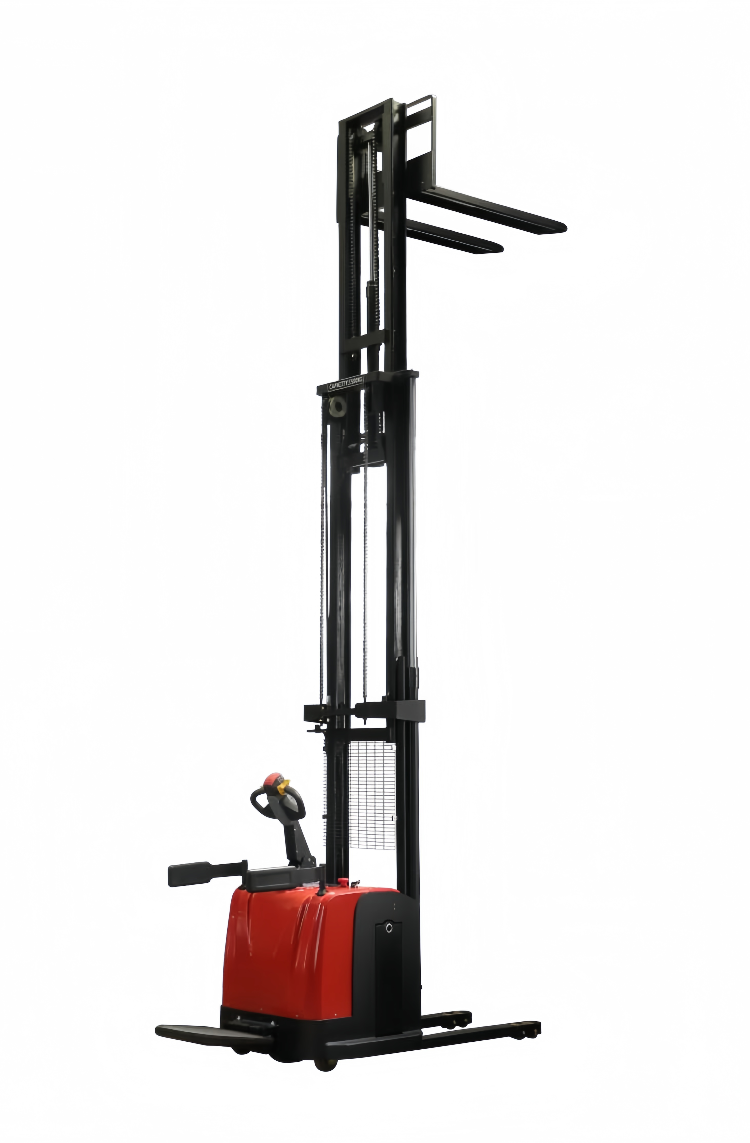

· Stand-on electric with folding pedals and protective arm
· Heavy-duty design, rugged construction, safe and durable
· AC drive assembly and electronic control system, reliable performance
· Electronic power steering system, light and flexible steering
· The arm guard is ergonomically designed to enhance operator comfort
· Ergonomically designed pedals are foldable to reduce operator fatigue
· United States imported Curtis electronic control system is responsive, easy to operate, highly reliable, with regenerative braking, reverse braking and stepless speed regulation and other functions
· The large-capacity traction battery is easy and fast to charge and has a long-lasting power
· The double lifting cylinder design accurately ensures the smooth lifting and lowering height of the frame

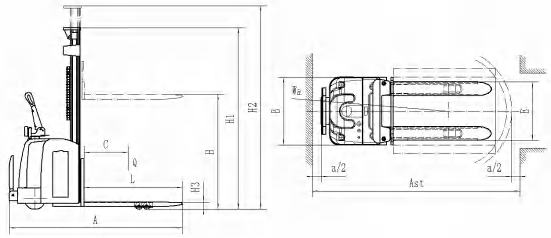

| MODEL | UNIT | ST-CDD 18 | ST-CDDJ 16 | ST-CDDS 16 | ST-CDDJS 15 |
| capacity | Q(kg) | 1800 | 1600 | 1600 | 1500 |
| load center | C(mm) | 500 | 500 | 500 | 500 |
| mast | two | two | three | three | |
| max fork height | H(mm) | 1600/2000/2500/3000/3500/4000 | 1600/2000/2500/3000/3500/4000 | 3500/4000/4500 | 3500/4000/4500 |
| operation type | electric steering | machanical steering | electric steering | machanical steering | |
| min. fork height | H3(mm) | 88 | 88 | 88 | 88 |
| fork span | E(mm) | 685 | 685 | 685 | 685 |
| fork length | L(mm) | 1150 | 1150 | 1150 | 1150 |
| overall length without/with pedal | A(mm) | 2070/2490 | 2070/2490 | 2100/2520 | 2100/2520 |
| overall width | B(mm) | 795 | 795 | 795 | 795 |
| overall height | H1(mm) | 2065/1500/1750/2000/2250/2500 | 2065/1500/1750/2000/2250/2500 | 1730/1895/2065 | 1730/1895/2065 |
| overall height when lift to max | H2(mm) | 2065/2455/2955/3455/3955/4455 | 2065/2455/2955/3455/3955/4455 | 3985/4485/4985 | 3985/4485/4985 |
| turning radius without/with pedal | Wa(mm) | 2070/2490 | 1635/2065 | 1635/2065 | 1635/2065 |
| gangway 1000X1200 pallet without/with pedal | mm | 2370/2790 | 2370/2790 | 2400 | 2400 |
| gangway 800X1000 pallet without/with pedal | mm | 2305/2725 | 2305/2725 | 2335 | 2335 |
| drive speed, load/unload | Km/h | 4~5.5 | 4~5.5 | 4~5.5 | 4~5.5 |
| lift speed, load/unload | m/s | 0.07~0.15 | 0.07~0.15 | 0.07~0.15 | 0.07~0.15 |
| lowering speed, load/unload | m/s | 0.1~0.12 | 0.1~0.12 | 0.1~0.12 | 0.1~0.12 |
| max. gradeability, load/unload | % | 5/7 | 5/7 | 5/7 | 5/7 |
| wheel material | PU | PU | PU | PU | |
| drive wheel | mm | φ248*75 | φ252*88 | φ248*75 | φ252*88 |
| load roller | mm | φ80*70 | φ80*70 | φ80*70 | φ80*70 |
| support wheel | mm | φ115*55 | φ115*55 | φ115*55 | φ115*55 |
| drive motor | Kw | AC1.5 | AC1.3 | AC1.5 | AC1.3 |
| lift motor | Kw | DC2.2 | DC2.2 | DC3 | DC3 |
| battery | V/ah | 24V/210AH | 24V/210AH | 24V/210AH | 24V/210AH |
| brake | electric | electric | electric | electric | |
| controller | CURITS | CURITS | CURITS | CURITS |
