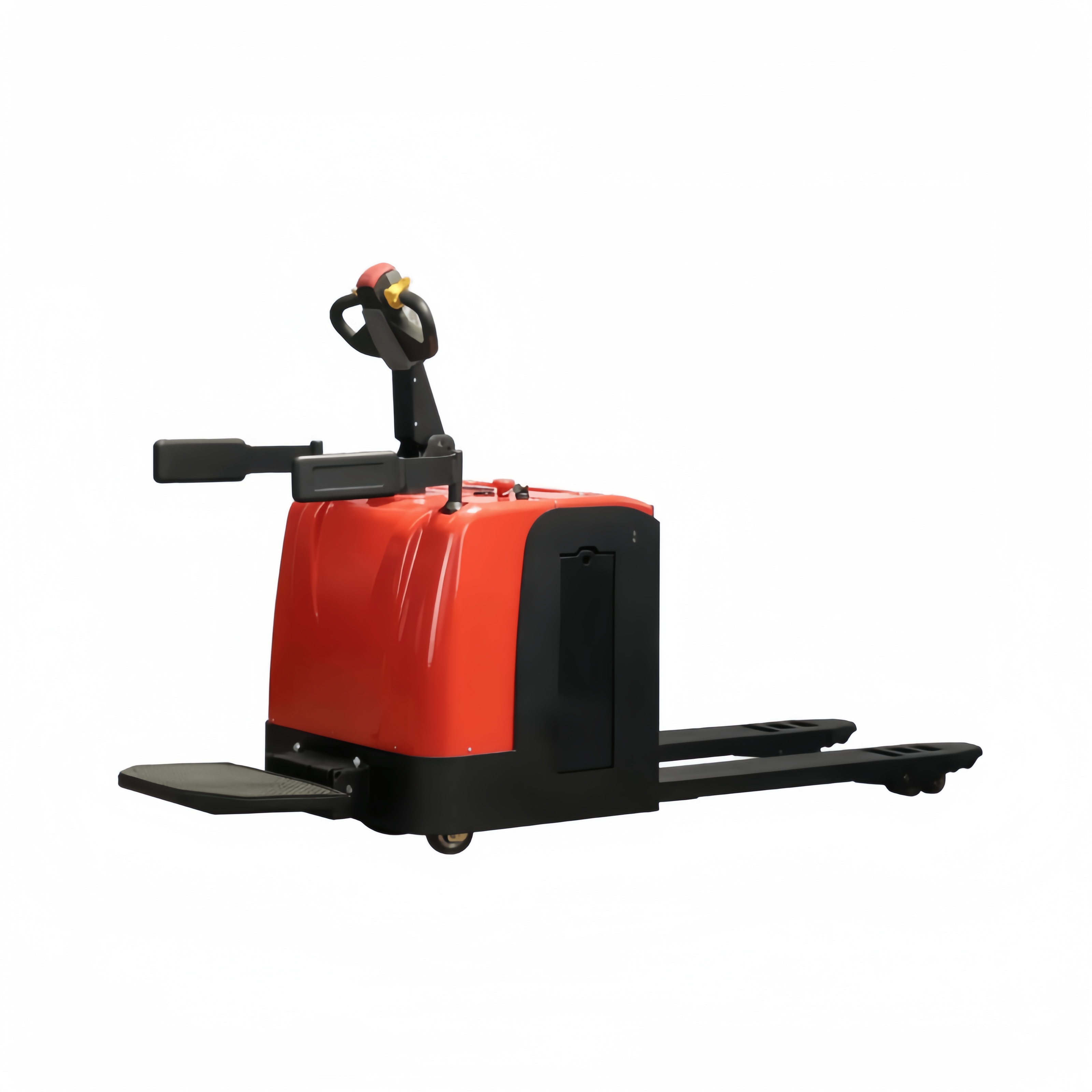

Station driven electric transport vehicle with movable pedals and protective arms
Heavy duty design, sturdy structure, safe and durable
Communication drive assembly and electronic control system, reliable performance
The arm guard design conforms to ergonomics and enhances the operator's comfort during operation
The pedal designed with ergonomics is foldable, which can reduce operator fatigue
Large capacity traction battery, easy and fast charging, long-lasting power

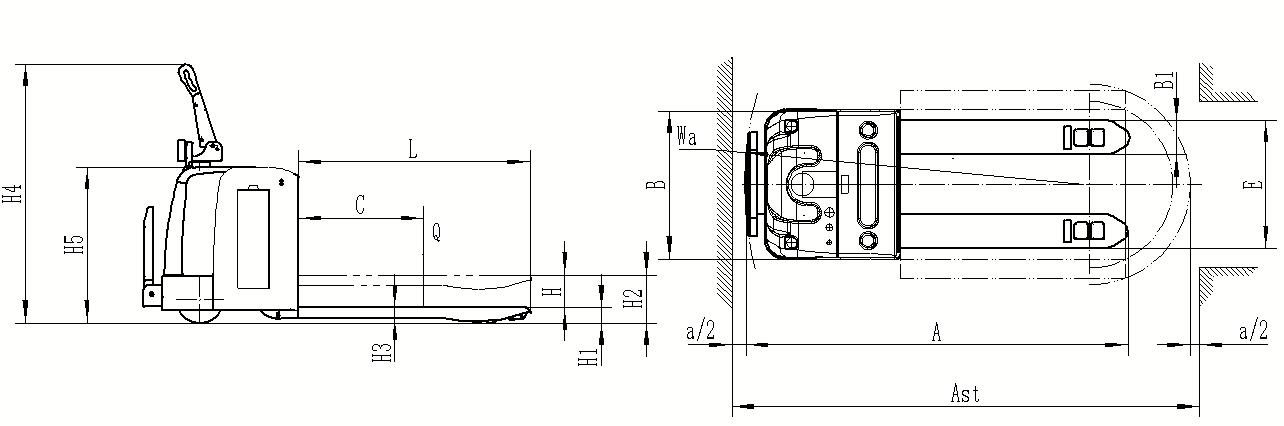

| MODEL | UNIT | CBD30 | CBD25 | CBDJ20 |
| capacity | Q(kg) | 3000 | 2500 | 2000 |
| load center | C(mm) | 600 | 600 | 600 |
| min. fork height | H1(mm) | 85 | 85 | 85 |
| max fork height | H2(mm) | 205 | 205 | 195 |
| fork span | E(mm) | 680 | 680 | 680 |
| fork length | L(mm) | 1220 | 1220 | 1150 |
| fork thickness | H3(mm) | 55 | 55 | 53 |
| fork width | B1(mm) | 180 | 180 | 160 |
| overall length(without/with pedal） | A(mm) | 2040/2460 | 2040/2460 | 1870 |
| overall height | H4(mm) | 1480 | 1480 | 1500 |
| overall width | B(mm) | 795 | 795 | 722 |
| turning radius(wittout/with pedal） | Wa(mm) | 1840/2260 | 1840/2260 | 1640/2060 |
| gangway（800x1200 pallet） | Ast | 2380 | 2380 | 2140 |
| gangway（1000x1200 pallet） | Ast | 2480 | 2480 | 2230 |
| weight | Kg | 740 | 740 | 570 |
| drive speed, load/unload | Km/h | 4~6 | 4~6 | 4~6 |
| lift speed, load/unload | m/s | 0.05~0.06 | 0.05~0.06 | 0.05~0.06 |
| max. gradeability, load/unload | % | 5~7 | 5~7 | 5~7 |
| wheel material | PU | PU | PU | |
| drive wheel | Mm | φ248*75 | φ250*80 | φ252*88 |
| load roller | mm | φ80*70 | φ80*70 | φ80*70 |
| support wheel | mm | φ115*55 | φ115*55 | φ115*55 |
| drive motor | Kw | AC1.5 | AC1.5 | AC1.3 |
| lift motor | Kw | DC2.2 | DC2.2 | DC2.2 |
| battery | V | 24 | 24 | 24 |
| battery capacity | ah | 210 | 210 | 165 |
| brake | electric | electric | electric | |
| controller | ZAPI AC-0 | LVM24S20 | ZAPI AC-0 |
