High quality hydraulic cylinder, labor-saving and durable;
Self locking eagle beak, automatically clamps the oil drum during lifting process
Hand controlled pressure relief valve, easy and precise operation;

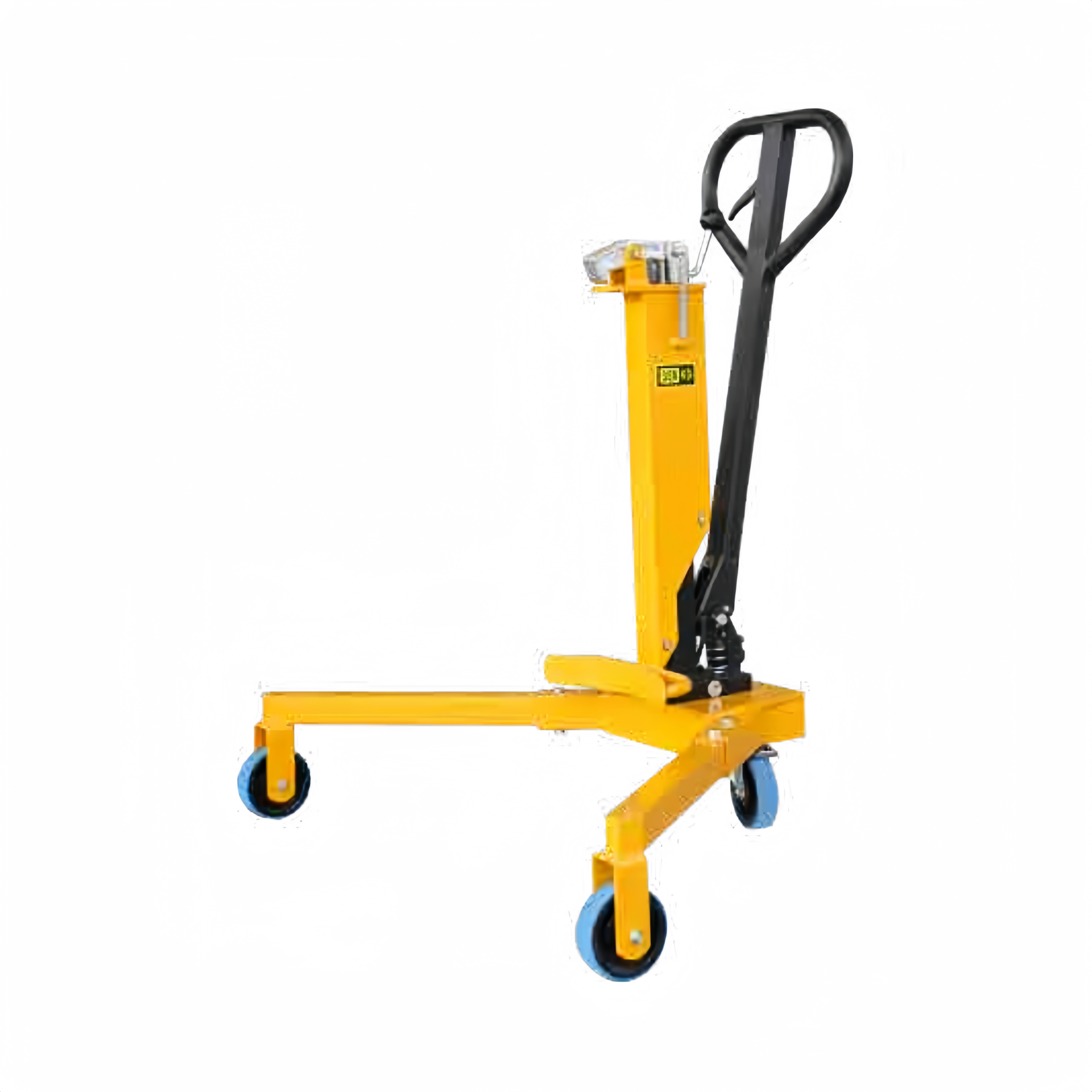

type A: DL-DP35A
clamp drum from floor
suit for 55 gallon steel drum

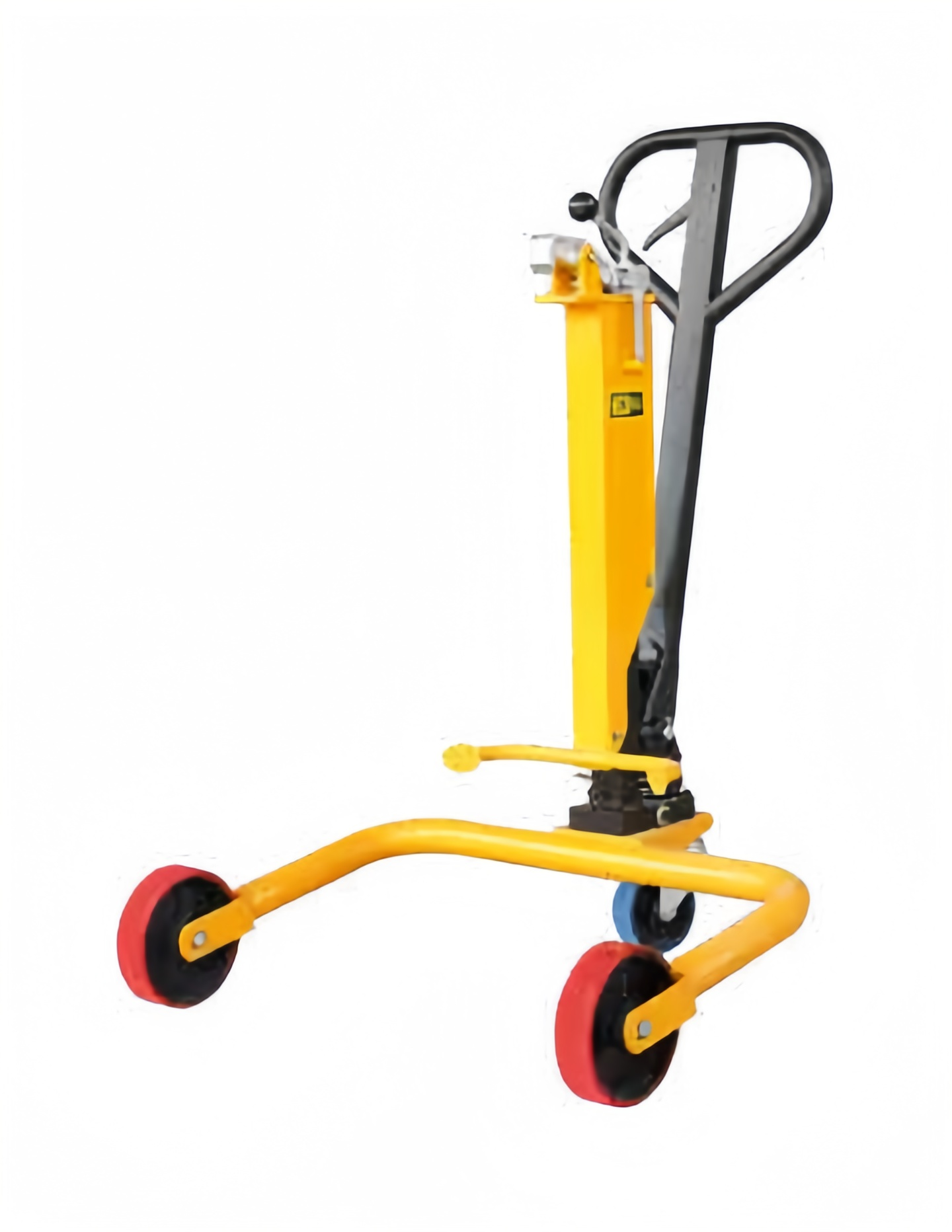

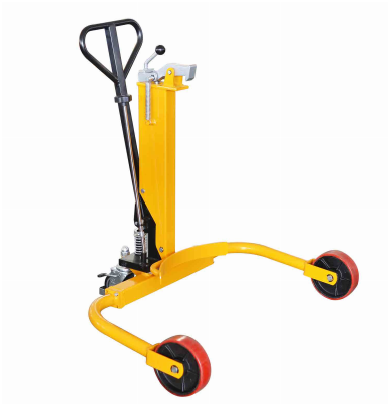

type B: DL-DP35B

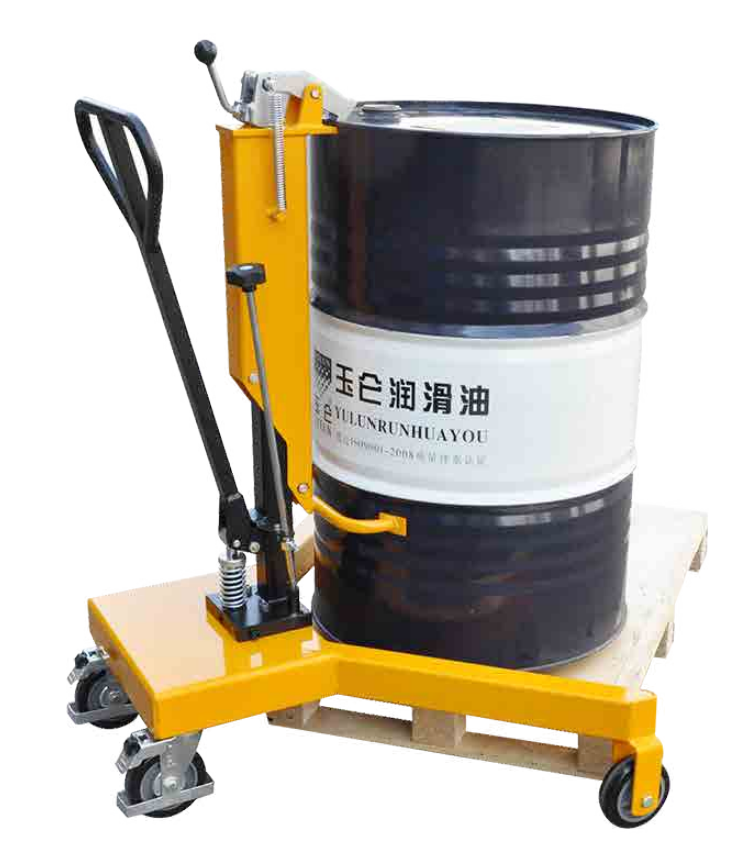

clamp drum from corner of pallet
suit for 55 gallon steel drum and 210L plastic drum
wider design, much stable when handling the drum
| MODEL | UNIT | DL-DP 35A | DL-DP 35B |
| capacity | kg | 350 | 350 |
| suit for drum | 55 gallon steel drum | 55 gallon steel drum/210L plastic drum | |
| lift height | mm | 250 | 250 |
| leg inner width | mm | 640 | 1000 |
| dimension | mm | 850*790*1150 | 855*1135*1185 |
| weight | kg | 35 | 45 |
