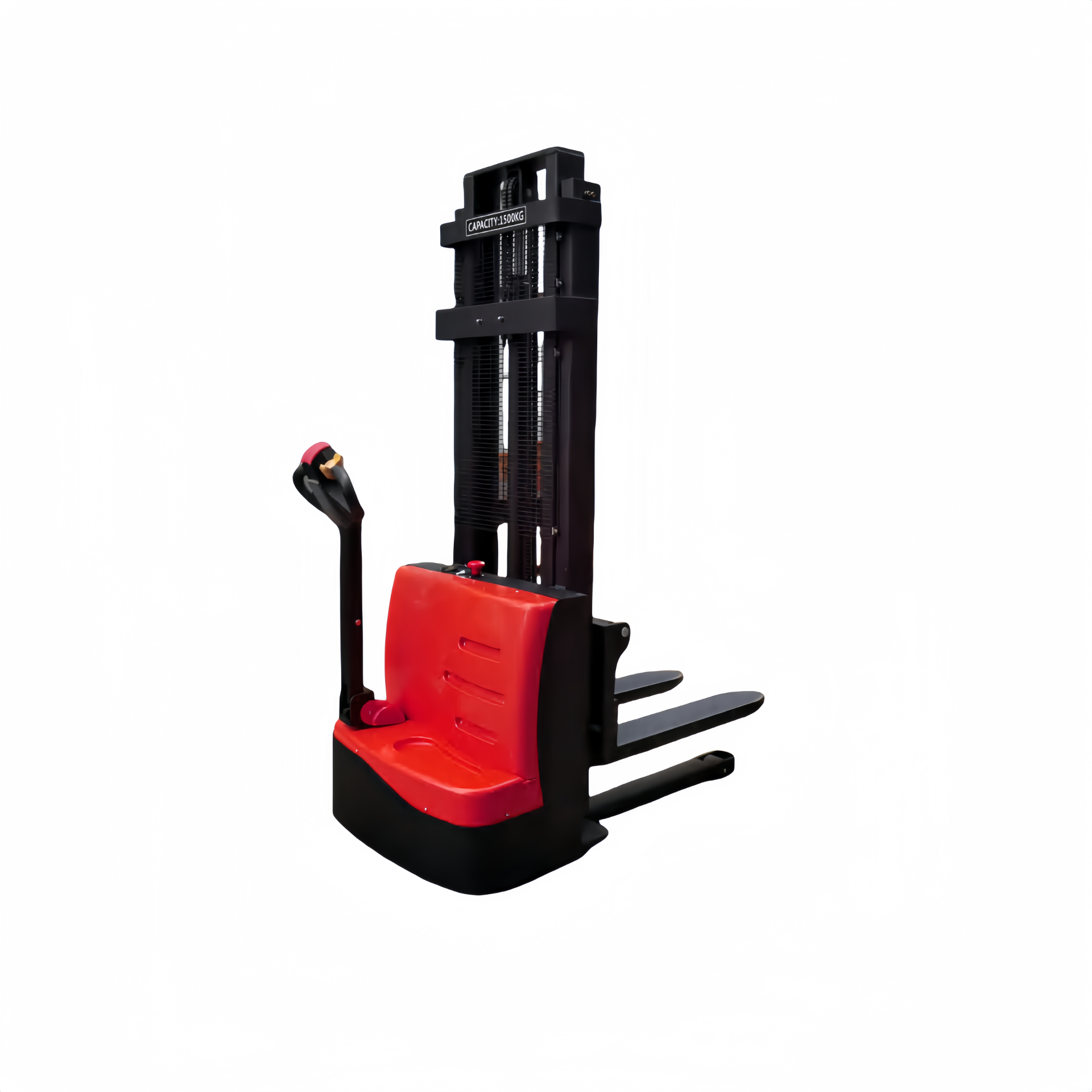

Low centre of gravity design with good stability.
Multifunctional display meter with power display, fault code display and cumulative working time display.
Battery can be pulled out from the side, convenient for battery interchange and maintenance.
Handlebar with emergency reverse switch for safer operation of the whole vehicle.
The handlebar is in the braking position both vertically and horizontally to improve the safety of the vehicle.
Integrated hydraulic power unit for more stable and reliable performance.
| MODEL | UNIT | CDDPJ |
| capacity | Q(kg) | 1200/1500 |
| load center | C(mm) | 500 |
| max fork height | H(mm) | 1600/2000/2500/3000/3500 |
| min. fork height | H1(mm) | 88 |
| fork span | E(mm) | 680 |
| fork length | L(mm) | 1150 |
| fork width | B1(mm) | 160 |
| overall length | A(mm) | 1885 |
| overall width | B(mm) | 820 |
| overall height | H4(mm) | 2065/1580/1830/2080/2330 |
| overall height when lift to max | H5(mm) | 2065/2535/3035/3535/4035 |
| turning radius | Wa(mm) | 1520 |
| gangway 1000X1200 pallet | mm | 2190 |
| gangway 800X1000 pallet | mm | 2260 |
| drive speed, load/unload | Km/h | 3~5 |
| lift speed, load/unload | m/s | 0.08~0.13 |
| lowering speed, load/unload | m/s | 0.1~0.13 |
| max. gradeability, load/unload | % | 5/7 |
| wheel material | PU | |
| drive wheel | mm | φ210*70 |
| load roller | mm | φ80*70 |
| support wheel | mm | φ130*55 |
| drive motor | Kw | DC0.75 |
| lift motor | Kw | DC2.2 |
| battery | V/ah | 65/12v（X2） |
| brake | electric | |
| controller | CURIS 1212P | |
| weight | 505/530/555/580/605 |
