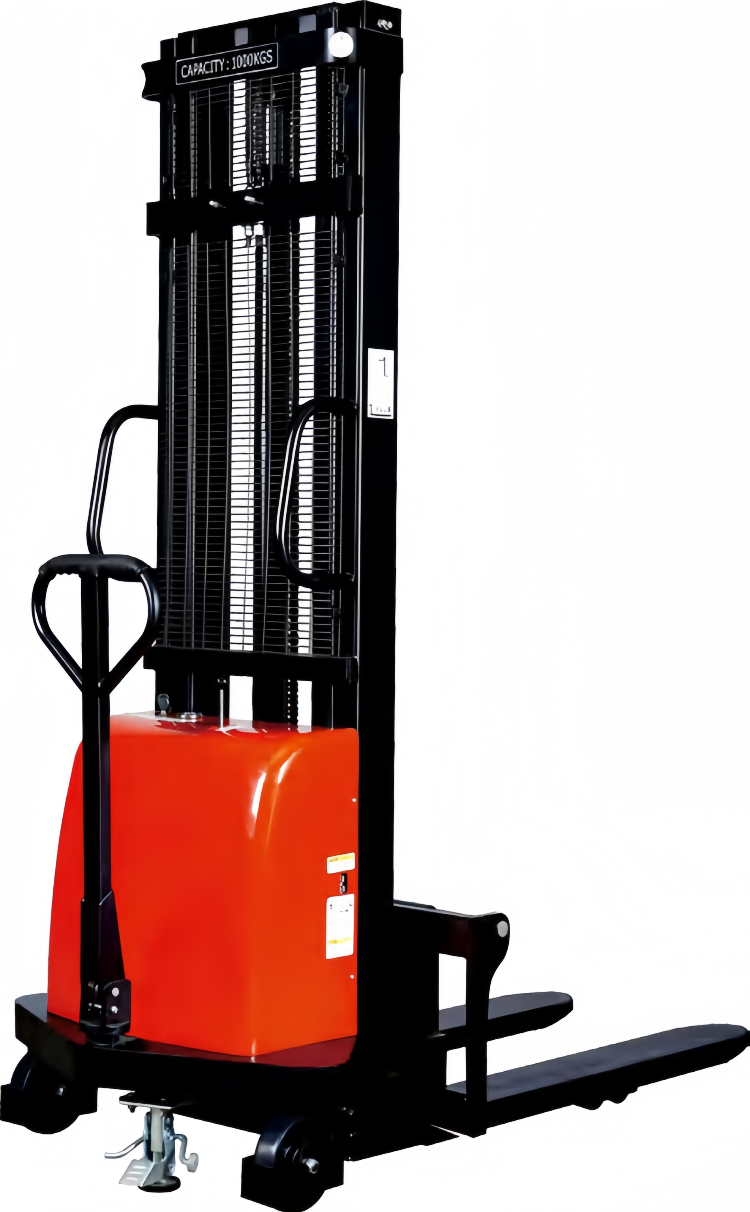

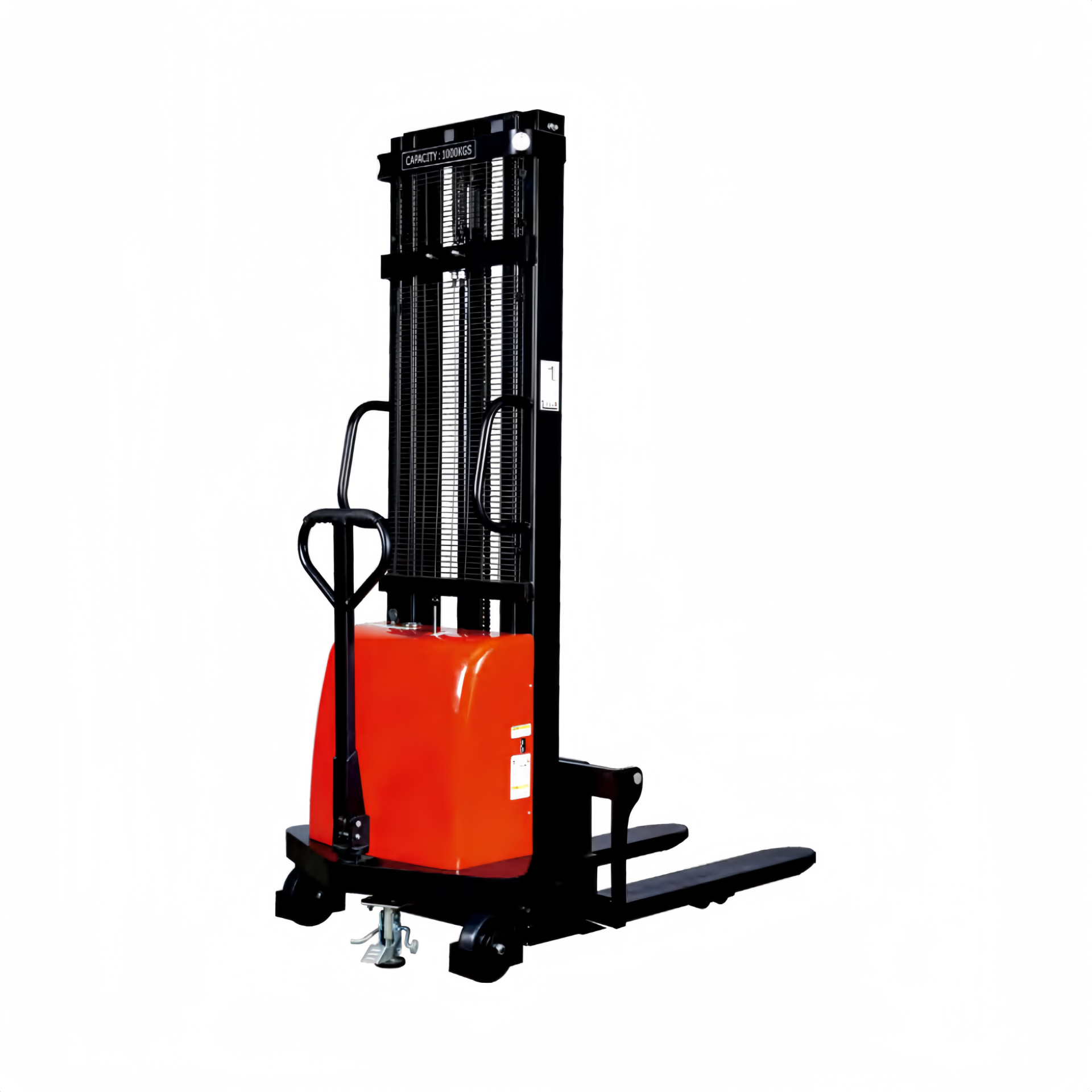

Special rolling process "C" type steel portal frame, solid and safe;
Integrated integrated hydraulic power unit with stable and reliable performance;
Exquisite body design, flexible operation and labor-saving driving;
The connecting rod type turning structure has good turning and control force. Chain auxiliary device can effectively reduce operation fatigue;
The foot brake is easy to operate.
Customizable specification: external width of support leg.
Optional: forged fork, covered fork and fixed fork.
Standard leg and straddle optional.
| MODEL | UNIT | ST-DYC10 | ST-DYC15 | ST-DYC20 | |||
| capacity | Q(kg) | 1000 | 1500 | 2000 | |||
| load center | C(mm) | 500 | 500 | 500 | |||
| max fork height | H(mm) | 1600/2000/2500/3000/3500 | 1600/2000/2500/3000/3500 | 1600/2000/2500 | |||
| min. fork height | H3(mm) | 88 | 88 | 88 | |||
| fork span(adj.) | E(mm) | 680 | 680 | 680 | |||
| fork length | L(mm) | 1000 | 1000 | 1000 | |||
| leg span | E2(mm) | 620 | 620 | 620 | |||
| overall length | A(mm) | 1690 | 1690 | 1690 | |||
| truck width | B(mm) | 800 | 800 | 800 | |||
| overall height | H2(mm) | 2065/1580/1830/2080/2330 | 2065/1580/1830/2080/2330 | 2065/1580/1830 | |||
| overall height when lift to max | H1(mm） | 2065/2535/3035/3535/4035 | 2065/2535/3035/3535/4035 | 2065/2535/3035 | |||
| gangway 1000X1200 pallet | mm | 2130 | 2130 | 2130 | |||
| gangway 800X1000 pallet | mm | 2190 | 2190 | 2190 | |||
| turning radius | Wa(mm) | 1360 | 1360 | 1360 | |||
| lift motor | Kw | 1.5 | 1.5 | 1.5 | |||
| battery | V/ah | 12V120AH | 12V120AH | 12V120AH | |||
