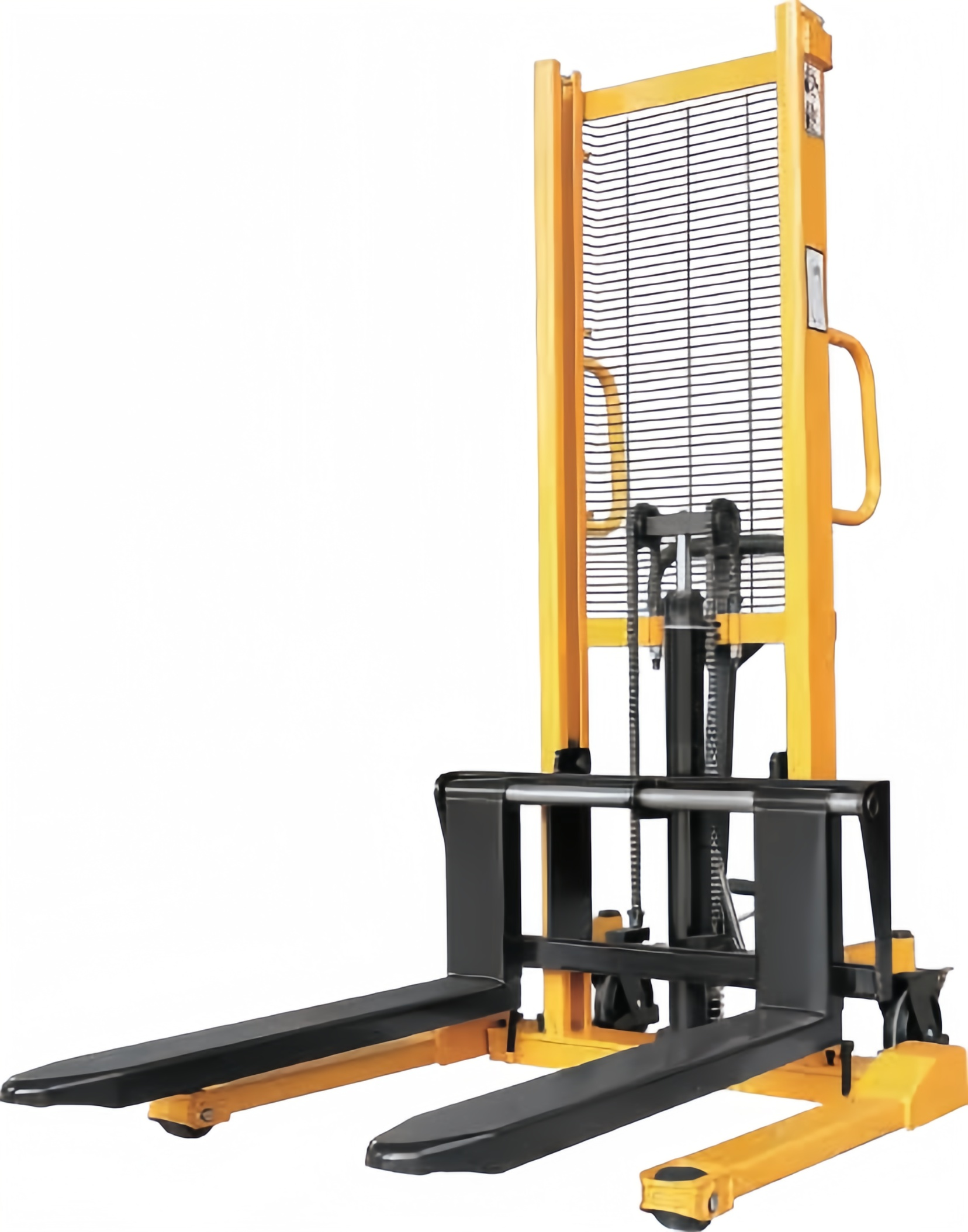

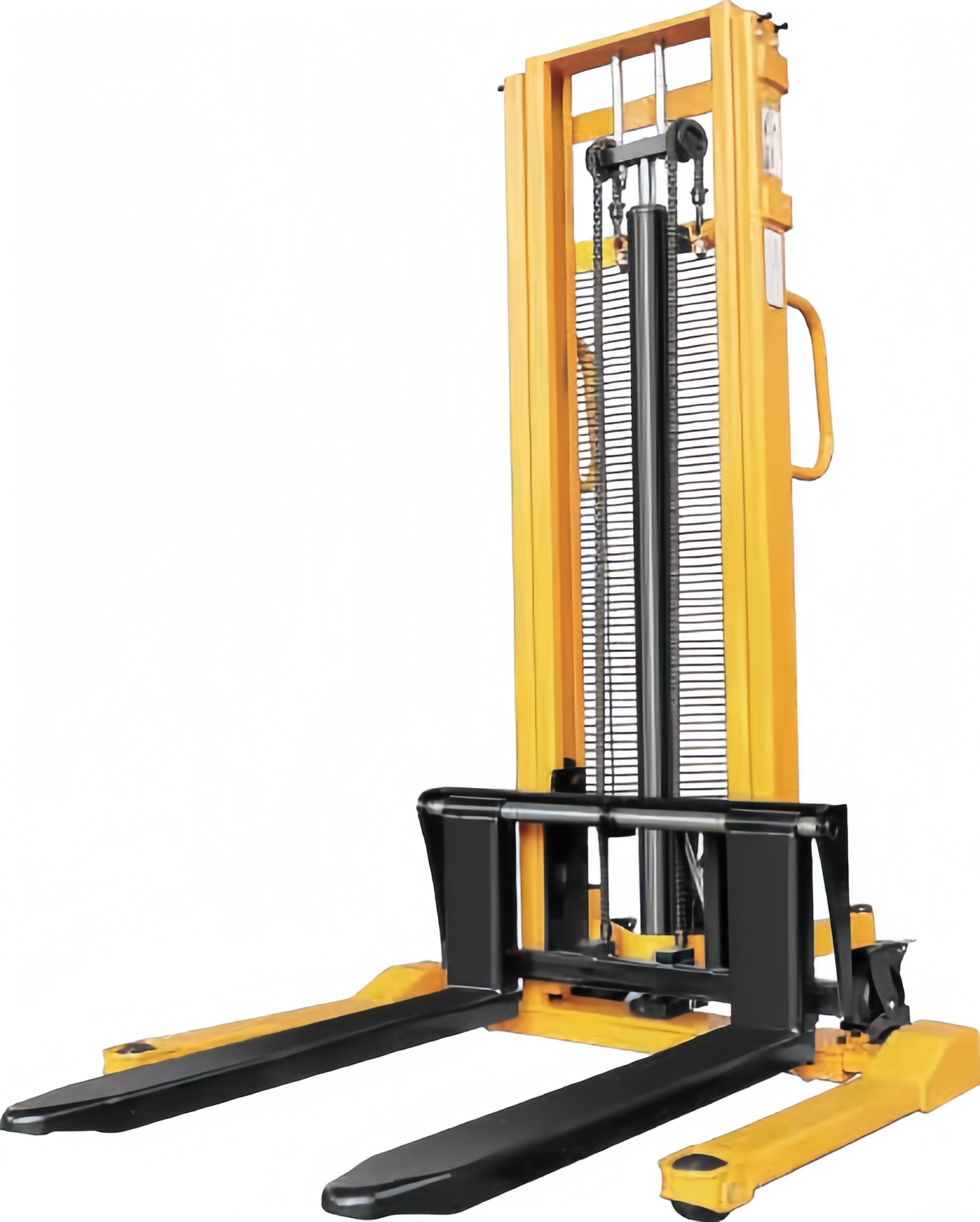

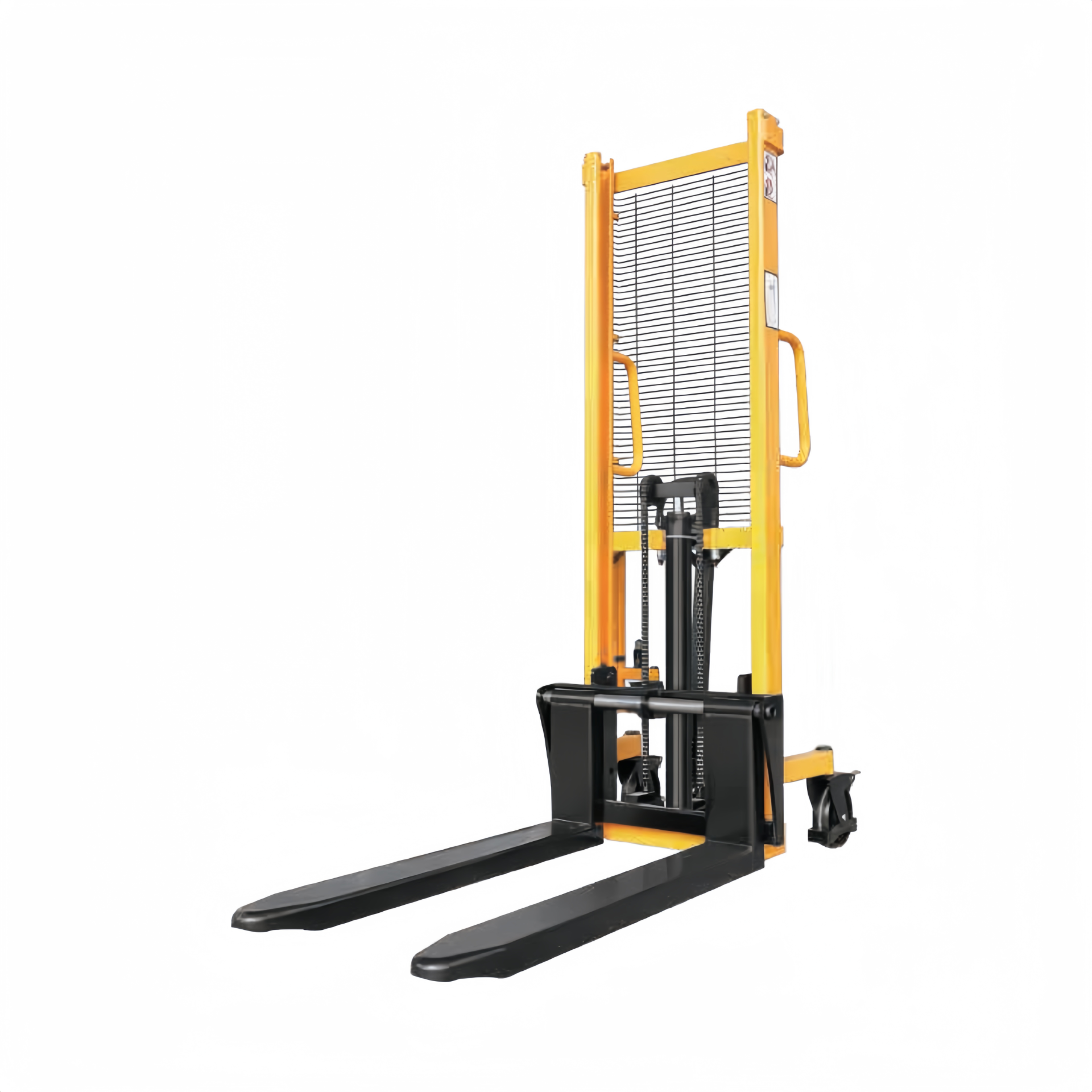

The portal frame is made of high-quality channel steel with good rigidity and high strength, which can be used for a long time.
The manual pedal can replace the lifting function of the operation, which is not easy to fatigue and improves the working efficiency;
Portal frame and fork are available in various styles, suitable for various sites and pallets stacking.
standard leg and straddle leg optional, fixed fork and ajustable fork optional;
Customizable specifications: external width and length of support leg; Outer width and length of fork.
| MODEL | UNIT | ST-SDJ(S)1016 | ST-SDJ(S)1025 | ST-SDJ(S)1030 | ST-SDJ(S)1516 | ST-SDJ(S)1525 | ST-SDJ(S)1530 | ST-SDJ(S)2016 |
| capacity | kg | 1000 | 1000 | 1000 | 1500 | 1500 | 1500 | 2000 |
| load center | mm | 500 | 500 | 500 | 400 | 400 | 400 | 400 |
| min. fork height | mm | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| max fork height | mm | 1600 | 2500 | 3000 | 1600 | 2500 | 3000 | 1600 |
| overall height | mm | 2080 | 1830 | 2080 | 2080 | 1830 | 2080 | 2080 |
| overall height when lift to max | mm | 2080 | 3000 | 3500 | 2080 | 3000 | 3500 | 2080 |
| overall length | mm | 1740 | 1740 | 1740 | 1740 | 1740 | 1740 | 1740 |
| overall width | mm | 760/1000 | 760/1000 | 760/1000 | 760/1000 | 760/1000 | 760/1000 | 760/1000 |
| fork size | mm | forged fork:30*100*1150, wrap over fork: 60*150*1150 | ||||||
| turning radius | mm | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 |
