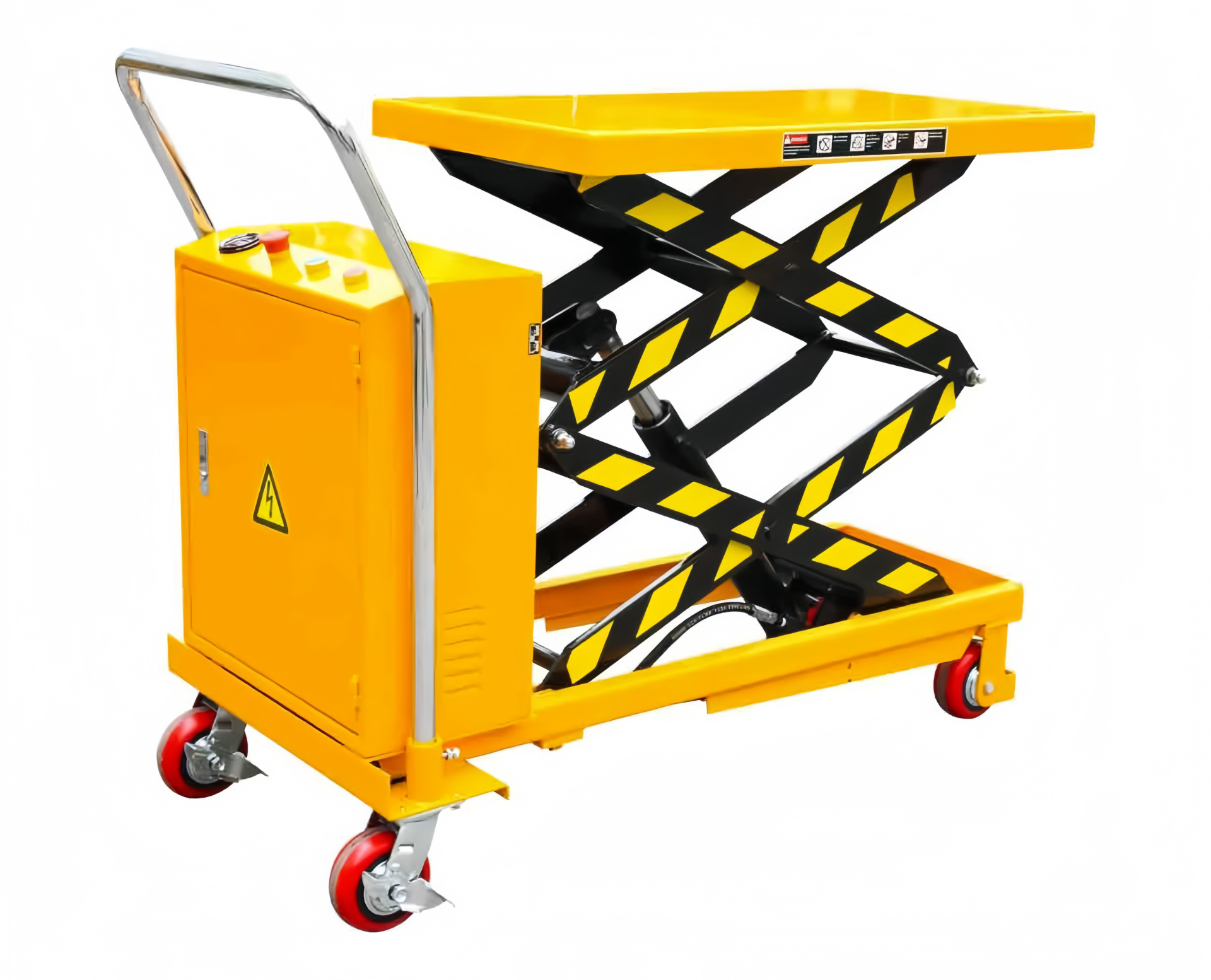

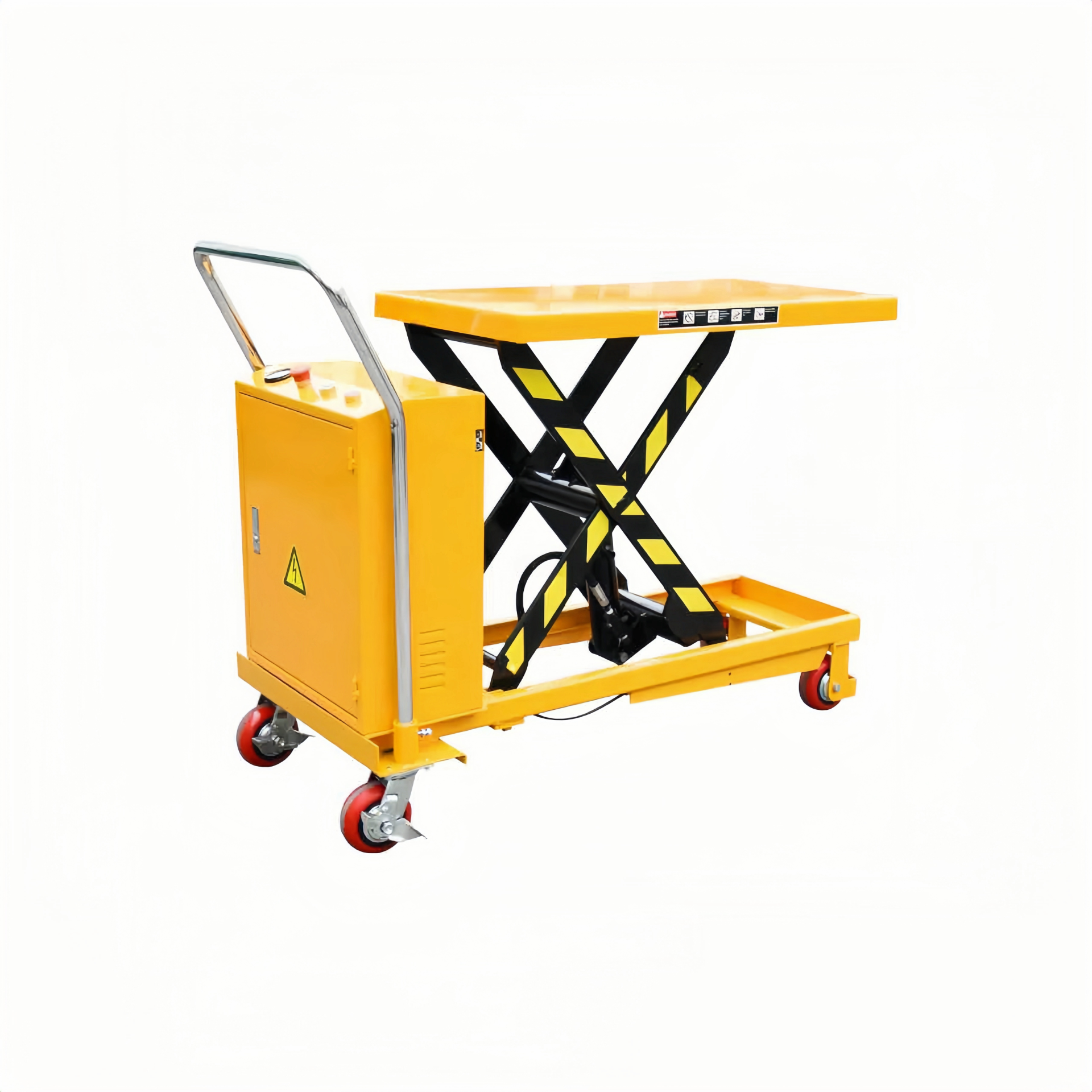

The mobile scissor lift is made of high-strength steel, with reasonable design structure, safe, stable and reliable, built-in safety valve, fully sealed oil cylinder, manual control hydraulic system lifting, easy to operate.
With guide wheels, it saves the operator's physical strength and can protect the wheels and pallet load-bearing wheels. The lifting system can be operated by battery power and manual control. Greatly improve work efficiency, reduce labor intensity, and can also be modified for handling and hoisting.
MODEL | UNIT | LT-DP 300 | LT-DP 500 | LT-DP 800 | LT-DP 1000 | LT-DP 1500 |
capacity | kg | 300 | 350 | 500 | 800 | 1000 |
min. table height | mm | 280 | 360 | 360/530 | 450 | 500 |
max table height | mm | 900 | 1300/1500 | 1500/2000 | 1500 | 1700 |
table size | mm | 950*500*50 | 905*500*50 | 905*500*50 | 1200*610*80 | 1200*610*80 |
wheel diameter | mm | 125 | 125 | 125 | 125 | 150 |
motor | v/kw | 12/0.8 | 12/0.8 | 12/0.8 | 12/1.6 | 12/1.6 |
battery | v/ah | 12/60 | 12/60 | 12/60 | 12/120 | 12/120 |
weight | kg | 108 | 110 | 148 | 150 | 160 |
