lead acid battery electric palllet truck (EPT-HP)
  • lead acid battery electric palllet truck (EPT-HP)
0

lead acid battery electric palllet truck (EPT-HP)

  • Equipment details
  • image.pngimage.png

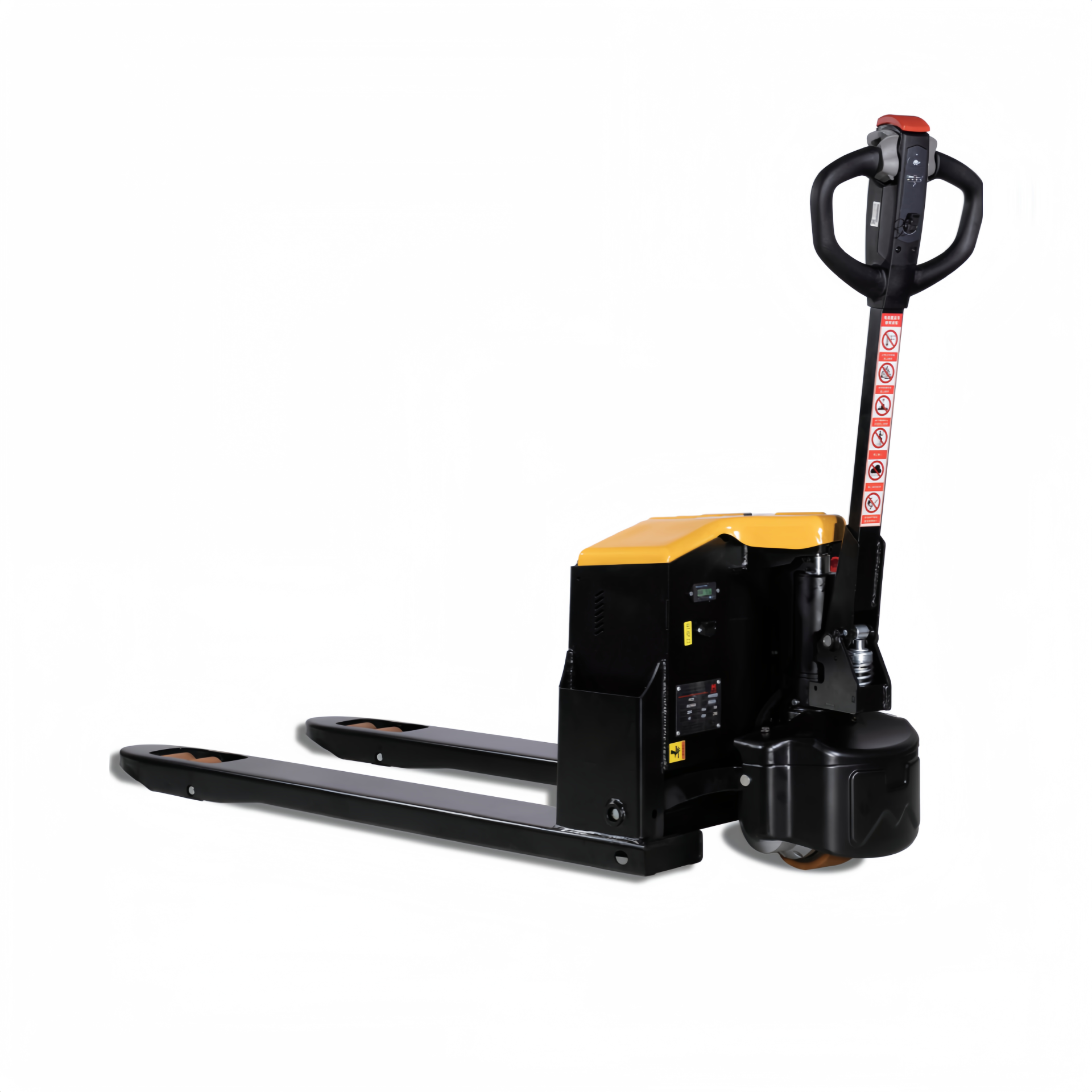

    Full powered pallet truck

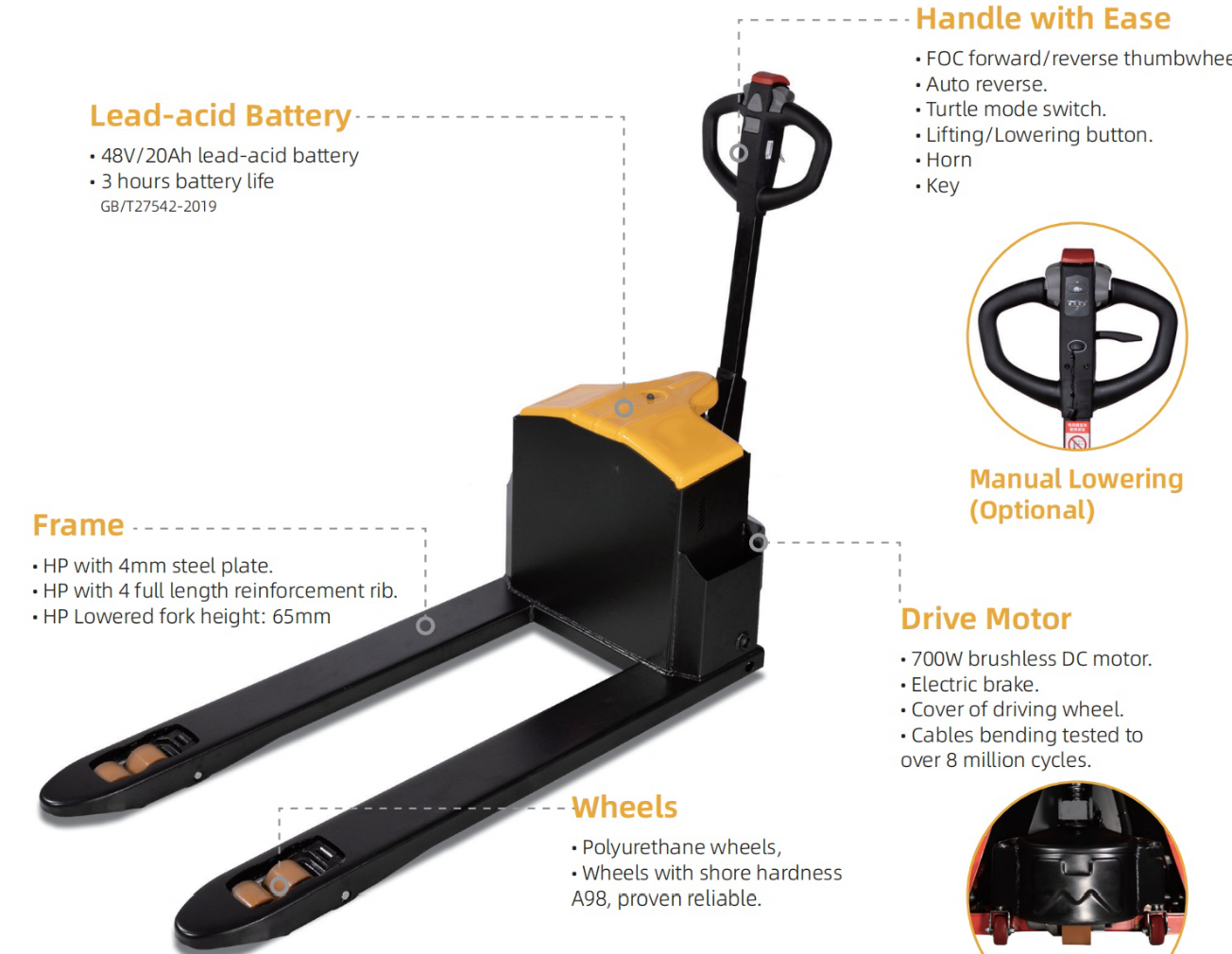

    -small size, light weight, low loss, and high efficiency;

    -The sturdy metal protective cover effectively protects the drive system and thoughtfully protects the operator's feet from injury;

    -imported waterproof micro switch, suitable for various harsh environments such as cold, damp, and dust;

    -There are up and down buttons on both sides of the operating handle, making it convenient for both hands to operate independently;

    -The handle is equipped with a turtle speed switch for more precise speed control and collision prevention;

    -Stepless speed regulation, making forward and backward operation more comfortable and easy.


    MODEL UNITEPT-HP
    capacitykg2000
    min. fork heightmm85/65
    max fork heightmm195/165
    drive wheelmmø168*55
    load rollermmø80*70 /ø63*76
    overall lengthmm1680/1750
    overall widthmm550/680
    fork spanmm550/680
    fork lengthmm1150/1220
    turning radiusmm1495/1565

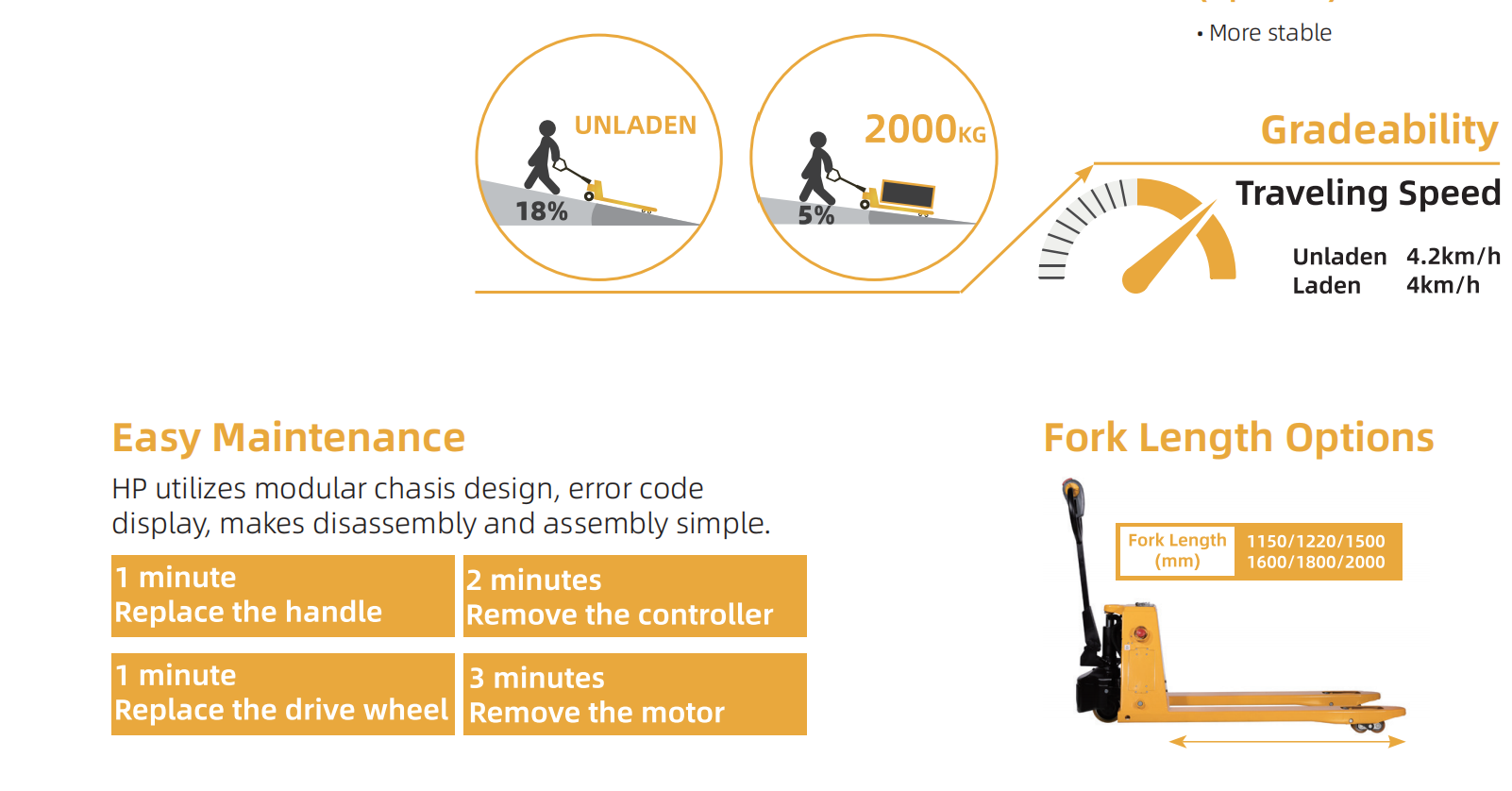

    drive speed, load/unloadkm/h4/4.2
    lift speed, load/unloadm/s0.02
    max. gradeability, load/unload%5/18
    brake
    electric
    drive motorkw0.7
    lift motorkw0.8
    batteruv/ahlead acid 48V/20AH
    weightkg170-180
